Development of a 4-Wheel Cornering Model Using SIMULINK
#Simulink #Python #Vehicle_Dynamics #Excel_Solver #Mathematical_Modeling #Parametric_Modeling

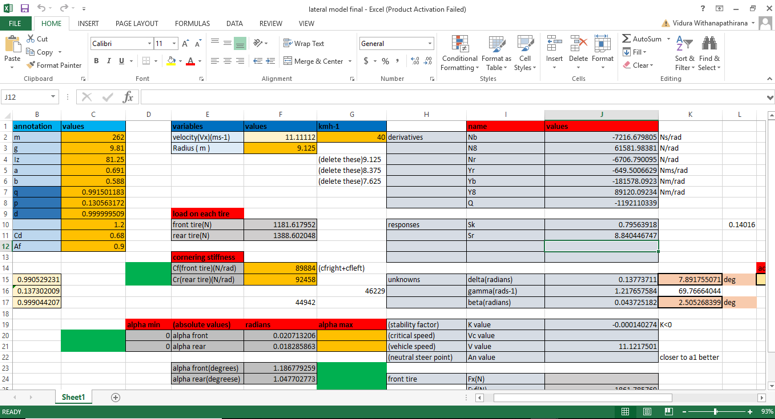

Bicycle model
First developed bicyle model using excel in order to find vehicle behavior in cornering

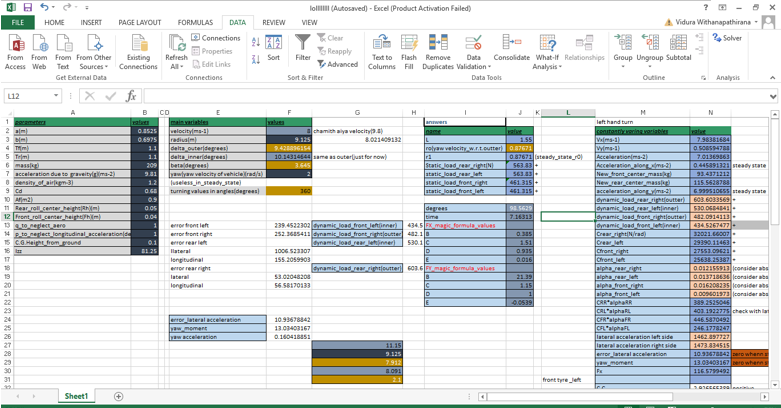

two track model
Developed two track cornering model using excel in order to predict cornering behavior of car

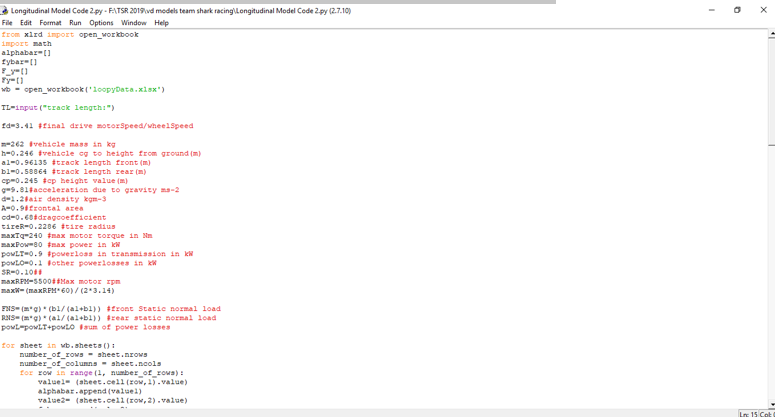

Python code bicycle model
Developed python code to find how car behave during acceleration event

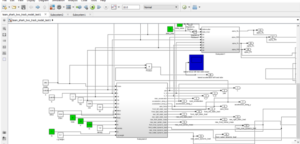

4 wheel cornering model early iteration
16 degrees of freedom vehicle dynamic model for 4 wheel vehicle.

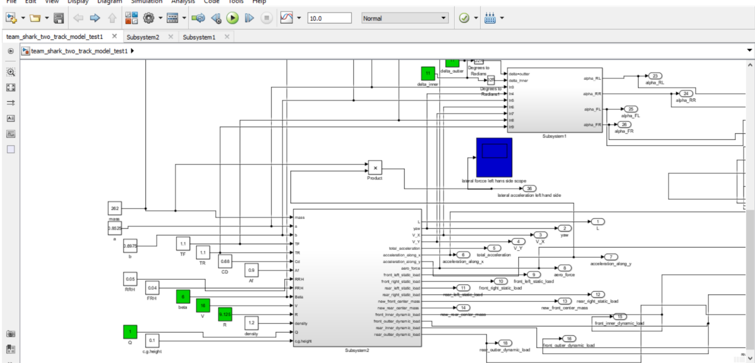

4 wheel cornering model
This model is developed in order to find velocity, beta steer angles in the vehicle during car cornering.
